product overview

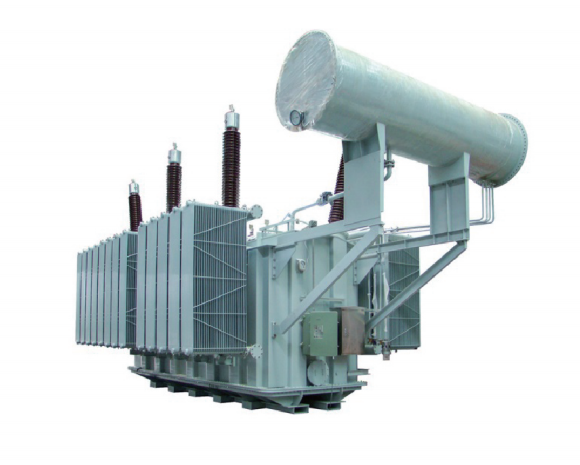

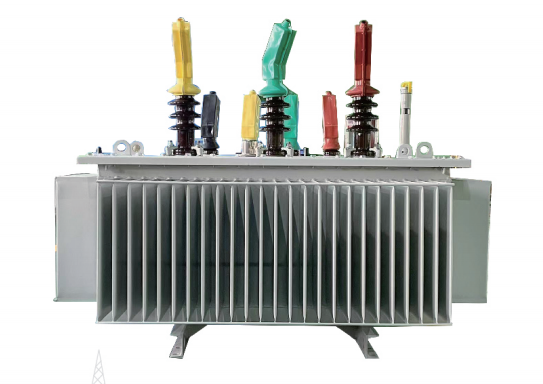

The 35KV-220KV three-phase oil immersed on load voltage regulating power transformer has undergone a series of significant reforms in materials, processes, and structures, resulting in significant benefits. Suitable for power plants, substations, large industrial and mining enterprises, etc.

This product complies with national standards: GB/T 1094.1-2013 "Power Transformers Part 1 General Principles", GB/T 1094.2-2013 "Electric Gap", GB/T 1094.5-2018 "Power Transformers Part 5 Ability to Withstand Short Circuit", GB/T 6451-2023 "Technical Parameters and Requirements for Three phase Oil immersed Power Transformers".

Transformer Class

35-220kV main transformer

35kV

Intelligent three-phase on load voltage regulation power

transformer

Environmental conditions for use

1. Device type: Outdoor type

2. Environmental temperature: maximum temperature+40 ℃, minimum temperature -30 ℃

3. Altitude: ≤ 1000 meters (>1000 meters, temperature rise needs to be corrected)

4. Relative temperature: ≤ 90% (25 ℃)

5. Installation location: areas without corrosive gases, obvious dirt, etc
